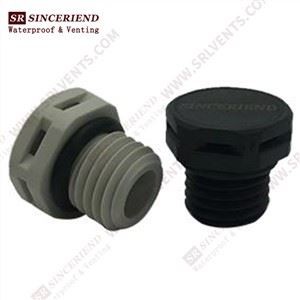

M12x1.5 Protective Vents

Product description

M12*1.5 protective vents (Screw type vents) are made from over molding of ePTFE membrane and plastic particles in the mold. The design of screw can ensure the vent shave excellent sealing performance and not to separate from the housing in the process of installation and application. The durability design of screw invents can be applied to all kinds of complicated application environment. Sinceriend excellent process technology ensures the best service life of the vents.

Quick Details

Standard or Nonstandard: Standard

Structure: Angle

Pressure: Low Pressure

Power: Hydraulic

Material: ePTFE+PA66/GF+Silicone or EPDM

Temperature of Media: High Temperature

Media: Gas

Port Size: 0.45UM

Place of Origin: Jiangsu, China (Mainland)

Model Number: SR568 SR668

Application: Protective vents

Resist Humidity Air: Yes

IP67,IP68: YES

Venting: Yes

Packaging & Delivery

Specifications

1.Supply to USA,Europe,and Austrilia ,Asia

2.Matrial:EPTFE

3.Professional Perfomance on acoustic db loss.

4.Airflow Venting: typical is 50cc/min@70mbar

5:IP67,IP68.

6:Resist Humidity Air

Data sheet of Plactic M12*1.5 protective vents

Product Type:         SR568XX-XXX

Description:          HydrophobicOleophobic Plastic Protective Vents

Functional Layer:     ePTFE

Feature

• Tolerate temperatures ranging from –40°C to 125°C.

• Perform to protection standards up to IP68/ IP69K.

• Provide maximum protection for applications in harsh environments through molded plastic or metal vents.

• Install easily by being adhered, threaded, snapped, bolted or heat/ultrasonic-welded to a variety of enclosure materials.

• Adhere to the device with adhesive backing for applications with insufficient free space to install a vent inside.

Advantage

1.   Waterproof and dustproof;

2.   Vent, protect the inside equipment operation normally and long in the serious environment;

3.   Heat dissipation, replace or assist in heat sink to lower inside temperature.

Installation

1.  Make sure mounting surface is clean and free of oil and other contaminants.

2.  As installation chart show, vents should be mounted on flat, vertical surface for best performance

3.  If cabinet housing thickness is  > 3mm, suggest using threaded hole, screw down tightly;

    If cabinet housing thickness is  < 3mm, suggest using straight-throud-hole and nut.

Our services

1. We believe to supply you our best services within 24 hours

2. We can design and produce products based on the client's requirements

3. The size packaging meshod and finishing methodcan be based on clients' requirements too

FAQ

What are our shipping service provided ?

1. Sinceriend can Load Container at:

Shanghai,Wuxi,Suzhou etc

2. Sinceriend  provide shipping method :Courier Service, Air Transport, Sea     Transport

3. Sinceriend accept order : Full Container Cargo Load ,  Less Container Lo ad

4. Sinceriend provide service: EX-WORK ,FOB,CIF,C&F,Door to Door etc

What our payment terms ?

T/T, L/C, Western Union, Cash,Paypal ,E-Credit Line,Escrew

Wuxi factory seal ePTFE membranes，Protective vents for M12*1.5 M6*0.75 M8*1.25 M14*1.5 M24*1.5 M32*1.5 M40*1.5

What kind of a company we are ?

We a MANUFACTURER located in Wuxi China. We were gainning good reputation among our customers for our professional, warm and thoughtful service, Because we know that a long terms business based on the quality control, prices, packing, delivery time etc.

Does your company is a factory or trade company ?

We have 1 factory ourselves, we are on this business for more than 10 years in China.

What's the quality assurance we provided and how do we control quality

1. Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials, validated or tested materials, finished goods, etc.

2.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
